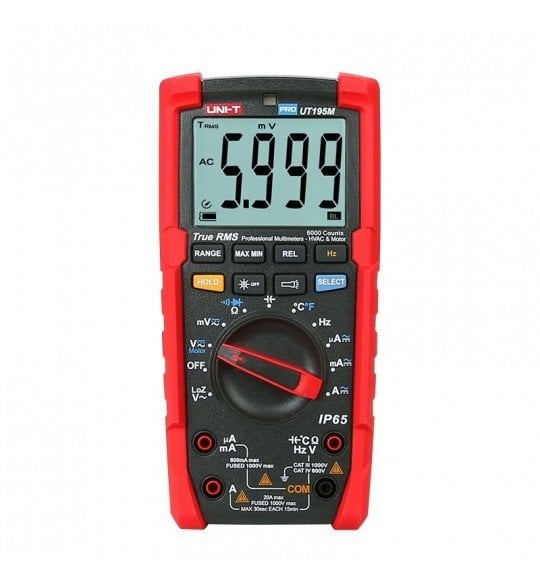

UNIT-UT-195M TRMS IP67 DİJİTAL MULTİMETRE

UNIT-UT-195M TRMS IP67 DİJİTAL MULTİMETRE

Ürün Adı

UNIT-UT-195M TRMS IP67 DİJİTAL MULTİMETRE

Stok Kodu

ENR23479

Garanti Süresi

1 Ay

Ürün Fiyatı

88,98 USD + KDV

İndirimli Fiyat

4.164,42 TL

Sepete Ekle

SpecificationsRangeBest AccuracyModel　UT195MDC voltage600mV ~ 1000V±(0.5%+3)AC voltage 600mV ~ 750V±(0.7%+3)LoZ ACV600.0V±(2.0%+3)DC current (A)600.0μA ~ 20A±(0.8%+3)AC current (A)600.0μA ~ 20A±(1.0%+3)Resistance (Ω)600.0Ω ~ 60.00MΩ±(0.8%+2)Capacitance 6.000nF ~ 60.00mF±(3%+5)Frequency60.00Hz ~ 40.00MHz±(0.1%+4)Duty ratio0.1% ~ 99.9%N/ATemperature °C-40 ~ 1000°C±(1.5%+4°C)Temperature °F-40 ~ 1832°F±(2.0%+5°F)FeaturesDisplay count　6000Display interface (HTN)　Single displayMeasurement of digital conversion rate times/s3True RMS　√AC voltage frequency response　45 ~1kHzAC current frequency response　45 ~1kHzLow pass filter test√ (1kHz 3dB attenuation)　Diode/Continuity test　3VAuto/Manual range√Auto power off√Continuity buzzer√Low battery indication√Data hold√MAX/MIN√Function selection√Flashlight√Auto backlight√Working temperature0 °C ~40 °C2m drop proof√Protection ratingIP65General CharacteristicsPower supply9V 6F22 carbon-zinc or 6LR61 alkaline batteryLCD size66mm × 51mmDevice colorRed and greyDevice weight473gDevice size195mm × 95mm × 58mmStandard accessoriesTest probes, battery, carrying bagStandard individual packingGift box, user manual, point type temperature probeStandard quantity per carton6pcsStandard carton size580mm × 375mm × 215mmStandard carton gross weight　

AMPER SEÇİMİ	:	AC/DC
AMPER DEĞERİ	:	20A
VOLTAJ DEĞERİ	:	1000V
AMPER KADEMELERİ	:	µA / mA
VOLTAJ KADEMELERİ	:	mV
TRMS	:	VAR
SICAKLIK ÖLÇÜMÜ	:	VAR
KAPASİTANS ÖLÇÜMÜ	:	VAR
FREKANS ÖLÇÜMÜ	:	VAR
DİYOT ÖLÇÜMÜ	:	VAR
