Fluke T5-600 Voltaj, Süreklilik ve Akım Test Cihazları
Satış Fiyat
10.820,52 TL (KDV DAHİL)
İndirimli Fiyatı
9.197,44 TL (KDV DAHİL)
| Ürün İncelemesi: Fluke T5-600 Voltaj, Süreklilik ve Akım Test Cihazları | ||

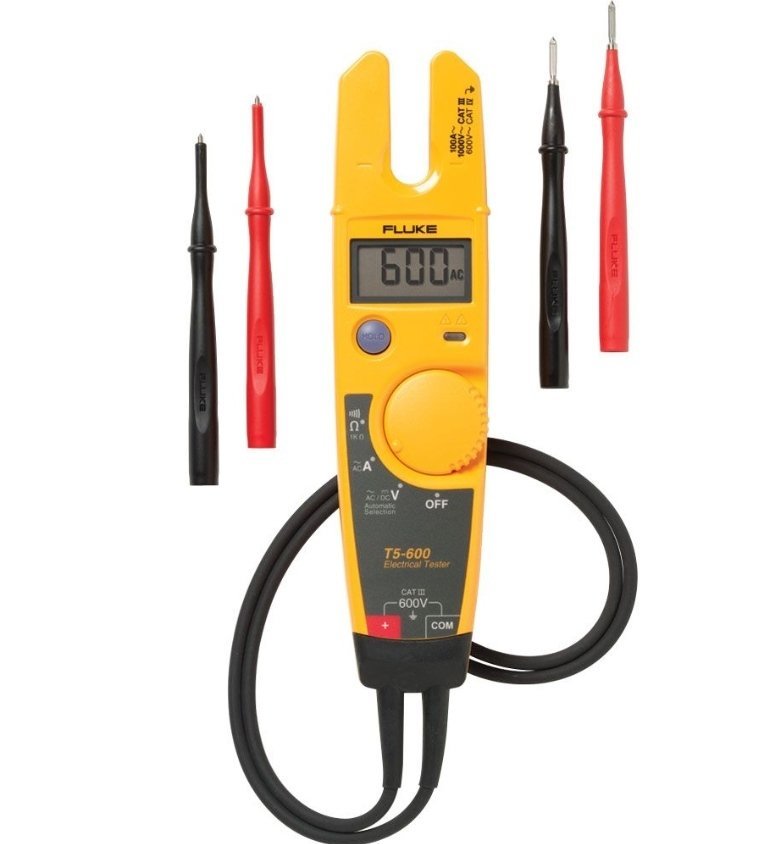

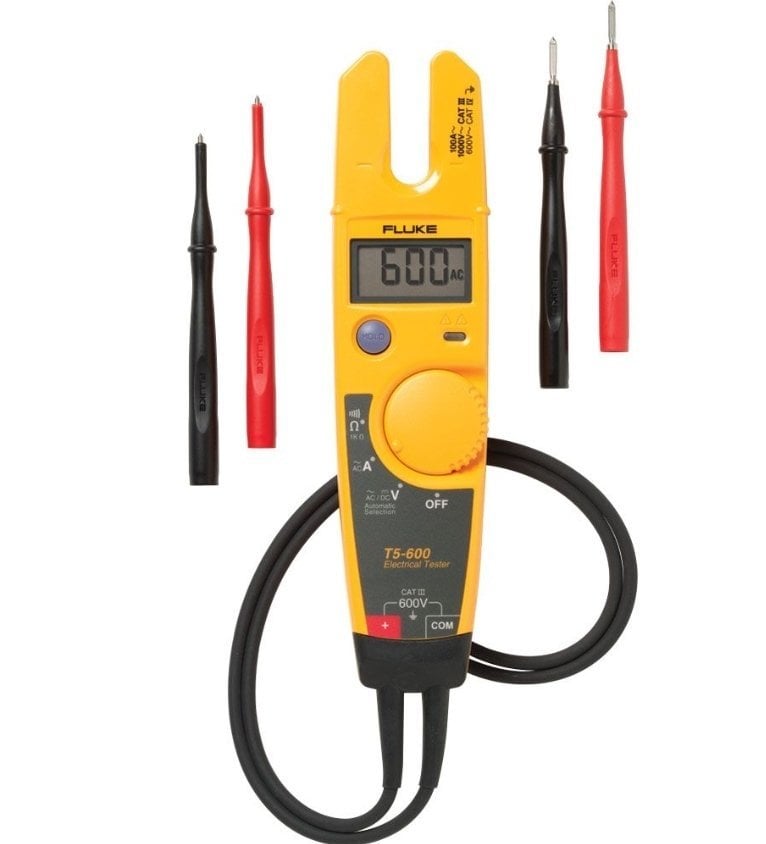

Fluke T5-600 Voltage, Continuity and Current Tester The T5-600 is a versatile troubleshooting tool to carry to every site. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.
|
||
| Automatically measure AC and DC voltage up to 600 V with precise digital resolution | ||
| Auto-selects between AC and DC voltage | ||
| Suitable for residential or commercial applications | ||
| Measure current up to 100 A without breaking the circuit with OpenJaw™ design | ||
| OpenJaw™ design allows for fast and easy current measurement | ||
| Measure current more safely without metallic contact | ||
| Troubleshoot resistance problems up to 1000 Ω | ||
| Measure resistance when troubleshooting motors, HVAC systems or electrical systems | ||
| Built-in continuity beeper provides fast and easy go/no-go tests | ||
| Work in tight spaces with detachable Slim Reach probe tips | ||
| Features a compact design with handy probe storage, easily fits in one hand | ||
| The test lead slot in the back makes the meter an "extended handle” for the probe, leaving the other hand free to place the second lead | ||
| Test leads accept Fluke accessory test clips | ||
| Key safety features | ||
| Protected to EN61010-1 CAT III 600 V rating | ||
| Integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester | ||
| UL and CSA approved | ||
| Additional product features | ||
| Withstands a 10 ft. (3 m) drop | ||
| Offers Auto-off mode to conserve battery life | ||
| Fits into an optional holster that attaches to a belt and neatly stows test leads | ||
| Özellikler: Fluke T5-600 Voltaj, Süreklilik ve Akım Test Cihazları | ||
|
Specifications
|
||
| Jaw opening | 12.9 mm (0.5 in) | |
| Max wire size | 1/0 THHN Cable | |
| Current range AC rms | 0 to 100.0 A | |
| Accuracy AC current (50/60 Hz) | 3% ± 3 counts | |
| AC response | Averaging | |
| Voltage range AC/DC | 0 to 600 V | |
| Voltage accuracy | AC | 1.5% ± 2 counts |
| DC | 1% ± 1 count | |
| Resistance range | 0 to 1000 Ω | |
| Continuity beeper threshold | On at < 25 Ω, off at > 400 Ω | |
| Volts indicator LED threshold | Guaranteed on by 30 V AC | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -30°C to 60°C | |
| Humidity (without condensation) | 0% to 95% (5°C to 30°C); | |
| 0% to 75% (30°C to 40°C); | ||
| 0% to 45% (40°C to 50°C) | ||
| Dust/water resistance | Yes | |
| Operating altitude | 2000 meters max | |
| Temperature coefficient | 0.1 x (specified accuracy)/°C (< 18°C or > 28°C) | |
| Safety Specifications | ||
| Measurement Category | IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac | |
| Agency approvals | CSA, TUV | |
| Maximum voltage | 600 V between any terminal and earth ground | |
| Mechanical and General Specifications | ||
| Size | 30.5 x 51 x 203 mm | |
| Weight | 300 g | |
| Warranty | Two-years | |
| Battery life | 200 hour zinc chloride, 400 hour alkaline | |
| Battery type | 2 x AA | |
| Low battery indicator | Yes | |
| Current sensor opening | 12.9 mm | |
